Studio Soul

24:2 Class A Discrete Mixing System

The Studio Soul 24:2 Class A, Discrete Mixing System

The Mercury Recording Equipment ‘Studio Soul 242 Pro’ is more than a summing mixer—it’s the missing tool in your studio to achieve the sound, isolation, and separation of mixing through a 24-channel Class A, Discrete Mixing Console… without the console.

This innovative system integrates seamlessly with your DAW, acting as the hub of your analog interface while delivering unparalleled sonic depth and character. The Mercury ‘Studio Soul 242 Pro’ is a powerhouse crafted for professional mixing engineers striving for unmatched sonic excellence. Featuring 24 transformers—one per input channel—and a fully discrete Class A, transformer-balanced mix amplifier. This system seamlessly merges analog warmth with the precision of modern DAW workflows.

Rediscover the expansive, full-bodied sound of a discrete console while maintaining a seamless connection to your digital environment. The ‘Studio Soul 242 Pro’ bridges the gap between the legendary sound of large-format consoles and the efficiency of contemporary production.

The Mercury Studio Soul 242 Pro Excels in Every Mixing Environment

  • Achieve a mix with the width, depth, character, and separation of using a mixing console.

  • Analog-style mixing with the convenience of a DAW.

  • Versatility for a variety of genres and mixing techniques.

  • Integrates seamlessly with Pro Tools or your preferred DAW.

  • Endless tone-shaping possibilities for a tailored mix.

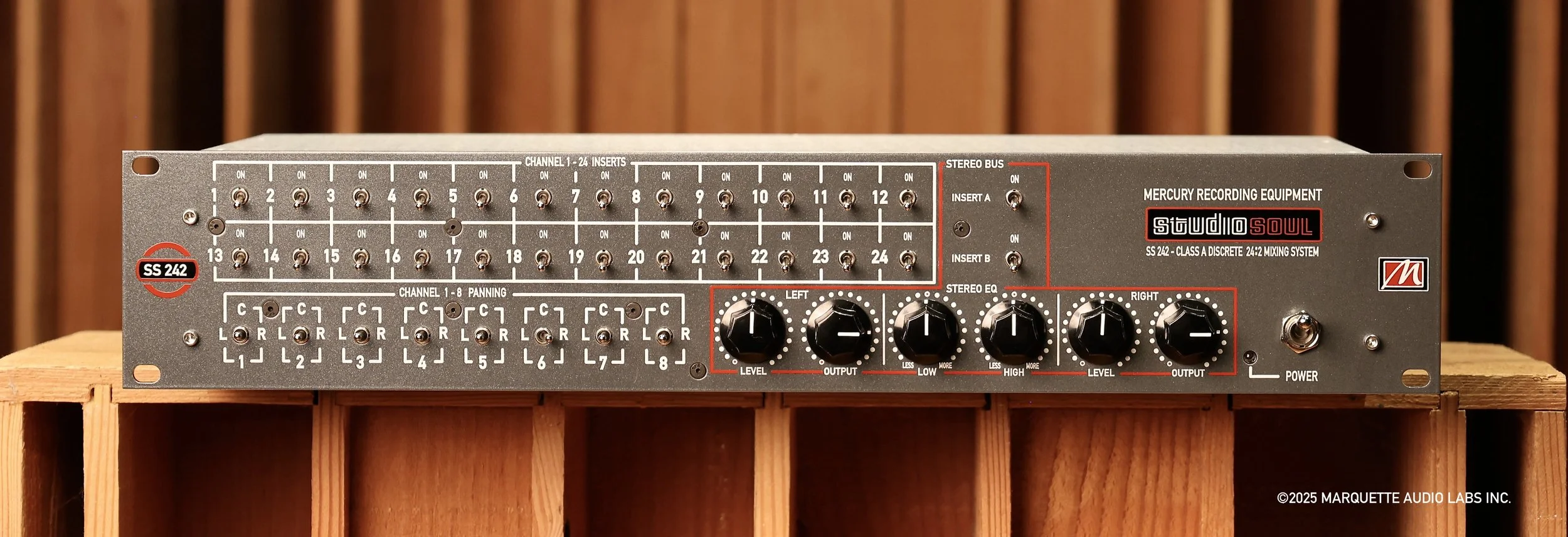

Features

  • Fully Discrete Class A Mix Amplifier: Ensures pristine audio quality and warmth.

  • 24 Transformer-Balanced Inputs: Provides unparalleled channel isolation / separation and audio clarity.

  • Stereo EQ: Baxandall-style EQ for subtle tone shaping of Stereo Bus, adjust 2 low and 2 high frequencies with two controls .

  • Custom Controls: The GAIN, LEVEL and EQ Controls, feature custom, 41 detent potentiometers for great feel and Easy Recall!

  • Flexibility: Use independent level control, output control, and Stereo EQ for endless tone-shaping possibilities.

  • Analog Insert Capability: Dedicated inserts for all 24 input channels for flexible analog processing.

  • Selectable Panning: Channels 1-8 can be set to Left, Right, or Center for creative routing, including Mono.

  • Transformer-Balanced Stereo Output: Classic tone with adjustable level control and fader attenuation.

  • Dual Stereo Bus Inserts:

    • Insert A (Pre Stereo EQ): Ideal for external stereo EQs like the Mercury EQP2.

    • Insert B (Post Stereo EQ): Perfect for stereo compressors such as Mercury 666 Limiters.

    • Listen independently or combine analog processing chains for creative mixing options.

    • Use a Tube EQ & Limiter on Insert A and a Discrete EQ and Limiter chain on Insert B.

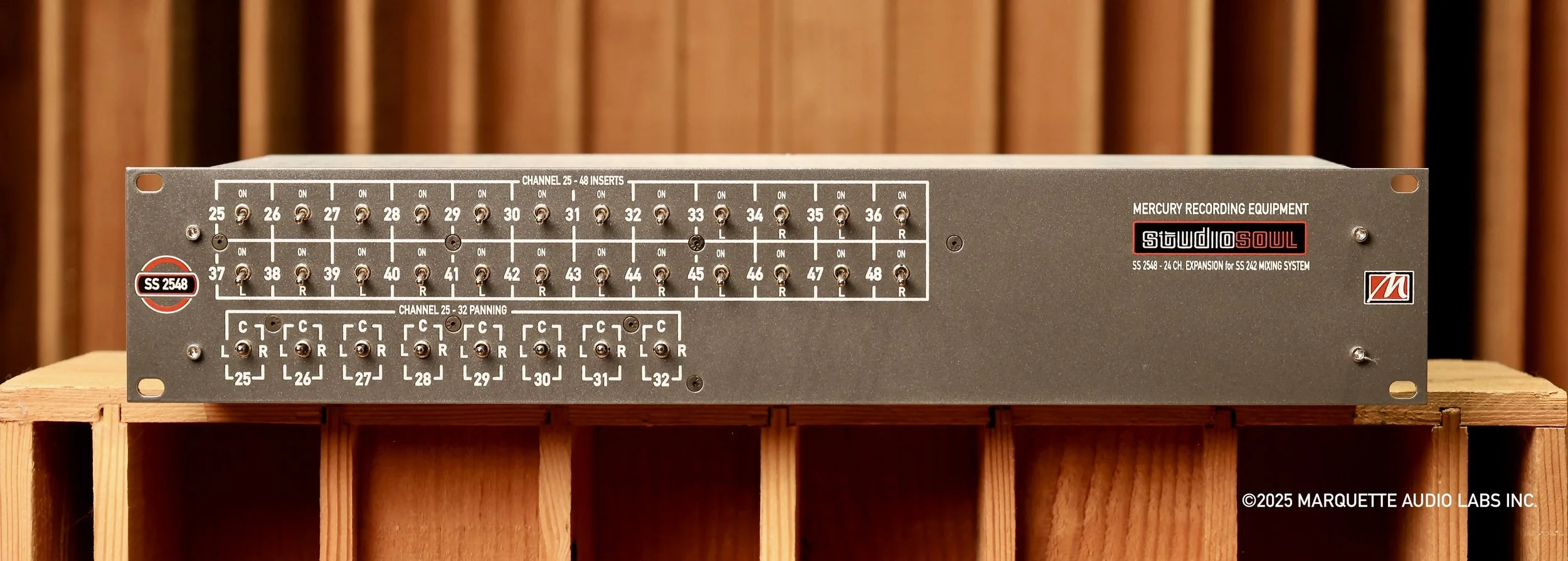

  • Expandable: The ‘Studio Soul 242 Pro’ and ‘Studio Soul 242’ are 24:2 mixing systems expandable to 48:2 with the Mercury 242 Mixing Expander (coming soon).

Pricing - TBD (Coming Soon!)

All Mercury Recording Equipment comes with a limited lifetime warranty and support.

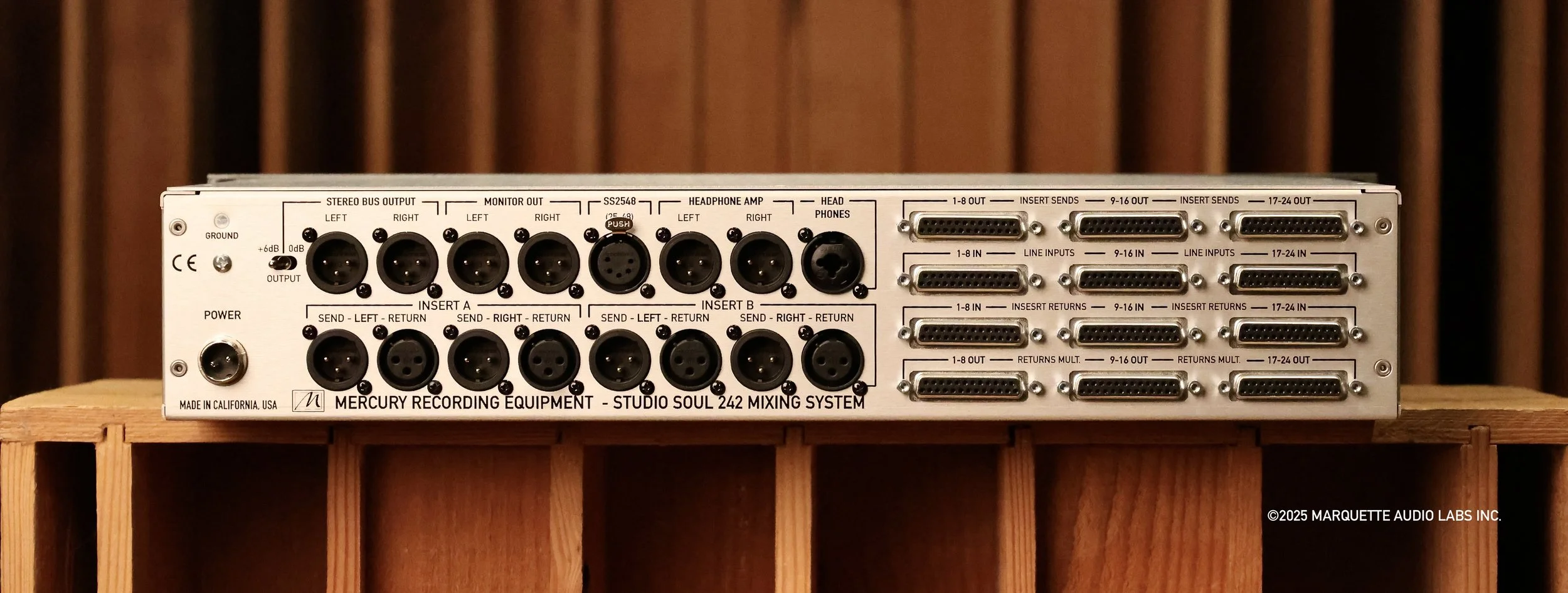

Specifications

Ground Lug: Ensures proper grounding when needed.

Power Input: Compatible with Mercury’s external power supply.

Output Gain Switch: 0 dB or +6 dB gain for the output stage.

Transformer-Balanced Stereo Bus Outputs: High-quality left and right outputs for main mix delivery.

Monitor Out: Balanced output for alternative monitoring.

Linking Capability: Expand to 48 channels with the Mercury 242 Mixing Expander (Coming Soon).

Headphone Amp Out: Two Gold pin XLRs for Balanced Output (L/R) to send to your favorite headphone amplifier.

Dedicated Headphone Jack: Combination XLR / ¼” Jack for direct monitoring.

DB25 Connections: 3x DB25 connectors for 1-24 Insert Sends, Line Inputs, and Insert Returns.

XLR Connections: 8x gold pin XLRs for Insert A and Insert B sends and returns (left and right).

Chassis: 2U, Steel construction with an aluminum front panel featuring a metallic gray powder coat.

Power Supply: 25W External power supply and cable included.

Weight: Approximately 10 lbs.

Handcrafted by Marquette Audio Labs in California, USA.
